Let every family enjoy convenient electric travel.
Type 2 cable/Type 2 socketWall-mount/Floor-stand
Three enclosure colors

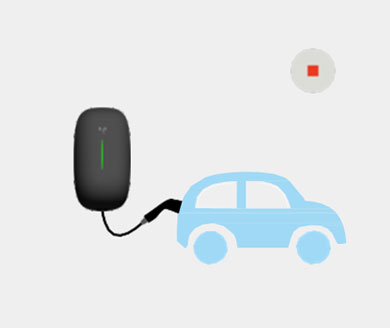

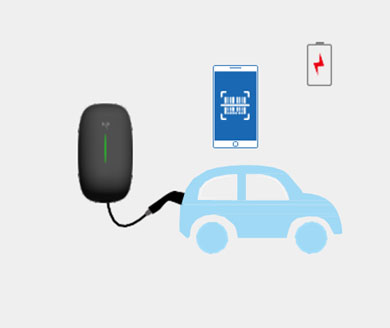

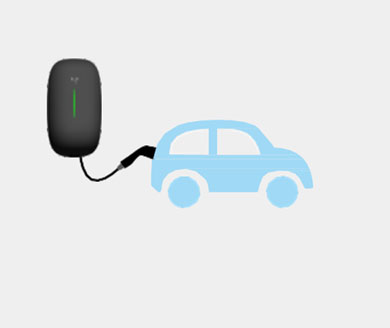

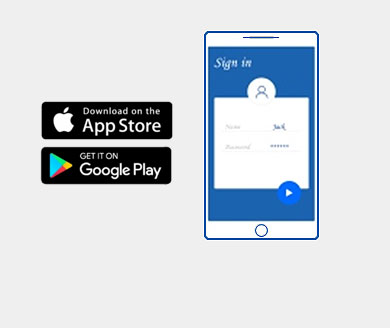

Start modes: RFID /Plug&Play / App
Multi communications (WiFi/4G/Ethernet) App
Charging scheduling
Load balance
PV compatible
Current adjustable
Bluetooth
30mA Type A + 6mA DC residual current protection
Relay-Sticking protection
Optional PEN-Fault protection
Multi-color RGB lightindication
Ergonomicand user-friendly enclosure design
T2S socket(optional)
Auto-switch between 1Phase and 3Phase (<6A)
|
Datasheet
|
Model
|
AC-E07SXE5A01,AC-E07SXS5A01,AC-E07SXH5A01
|
AC-E11TXE5A01,AC-E11TXS5A01,AC-E11TXH5A01
|
|
Input
|
Power Supply
|
1P+N+PE
|
3P+N+PE
|
|
Rated Voltage
|
230V AC
|
400V AC
|
|
|
Rated Current
|
32A
|
16A
|
|
|
Frequency
|
50/60Hz
|
50/60Hz
|
|
|
Output
|
Output Voltage
|
230V AC
|
400V AC
|
|
Maximum Current
|
32A
|
16A
|
|
|
Output Power
|
7kW
|
11kW
|
|
|
User Interface
|
Charge Connector
|
Type 2 cable (Type 2 socket optional)
|
|
|
Cable Length
|
4m(7m optional)
|
||
|
Housing Material
|
Plastic PC940
|
||
|
LED Indicator
|
Green/Yellow/Red
|
||
|
RFID Reader
|
Mifare ISO/IEC 14443 A
|
||
|
Start Mode
|
Plug&Play/RFID card/App
|
||
|
Communication
|
WiFi
|
WiFi(2.4GHz)
|
|
|
4G
|
Optional
|
||
|
Bluetooth
|
Yes
|
||
|
Ethernet
|
Yes
|
||
|
ESIM
|
Optional
|
||
|
Optional
|
OCPP1.6 Json (OCPP2.0 upgraded)
|
||
|
Security and Safety
|
RCD
|
30mA + 6mA DC detection
|
|
|
Ingress Protection
|
IP65
|
||
|
Impact Protection
|
IK10
|
||
|
Electrical Protection
|
Over current protection, Residual current protection. Surge protection.
Over/Under voltage protection, Over/Under frequency protection, Overtemperature protection |
||
|
Certification
|
CE/CB
|
||
|
Certification Standard
|
IEC 61851-1:2019 IEC 62955:2018 IEC 61851-21-2:2018 IEC 62196
|
||
|
Warranty
|
2 years
|
||
|
Environment
|
Installation
|
Wall-mount/Pole-mount(Optional)
|
|
|
Work Temperature
|
-30℃~+50℃
|
||
|
Work Humidity
|
5%~95%
|
||
|
Work Altitude
|
<2000m
|
||
|
Package
|
Product Dimension
|
344*201*100mm(H*W*D) Cable
344*201*135mm(H*W*D) Socket |
|
|
Package Dimension
|
440*340*240mm(L*W*H) Cable
400*250*210mm(L*W*H) Socket |
||
|
Net Weight
|
3.1kg
|
3.5kg
|
|
|
Gross Weight
|
3.6kg
|
4.1kg
|
|
|
External Package
|
Carton
|
||
